Chemical industry

Description:

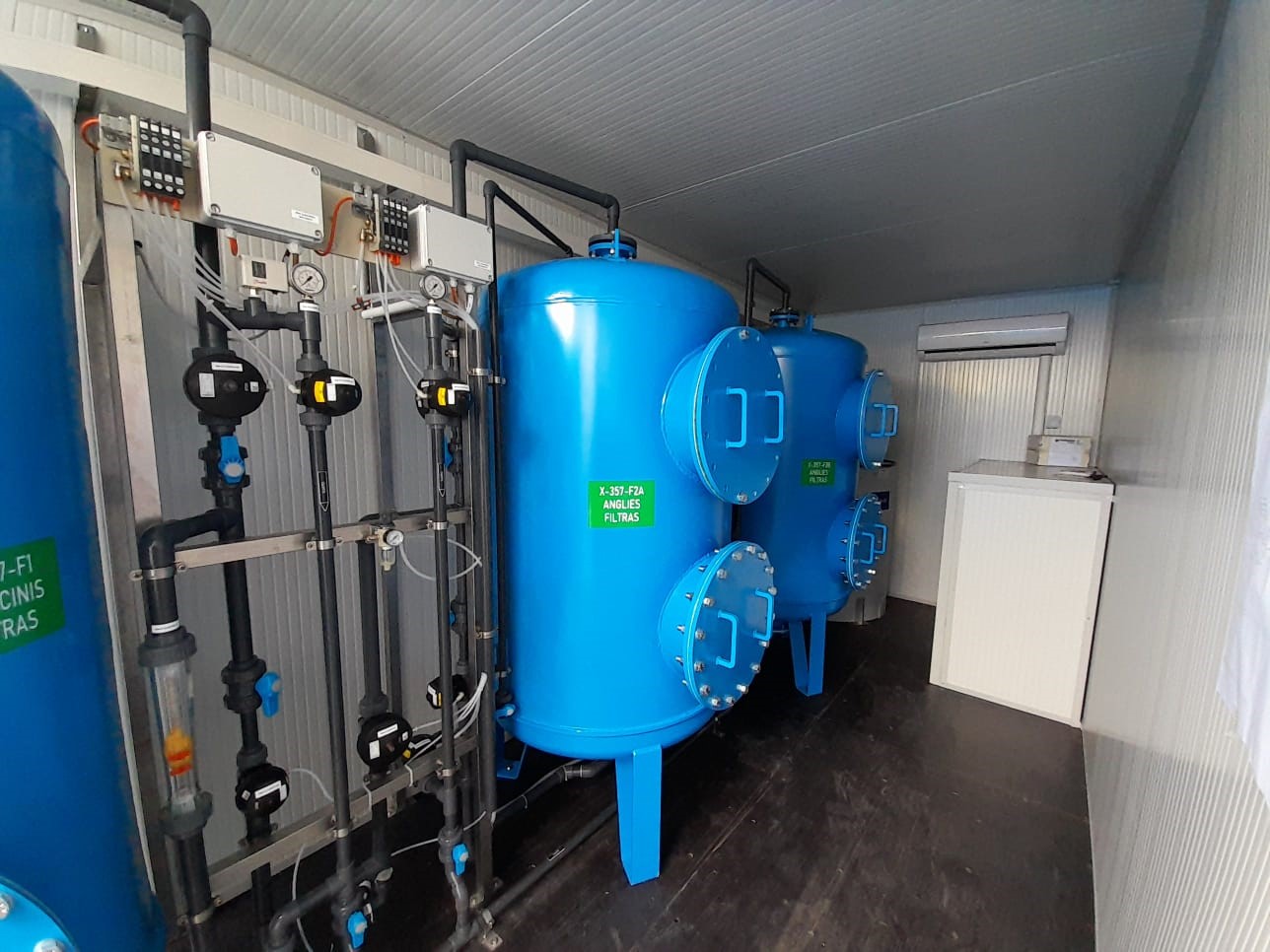

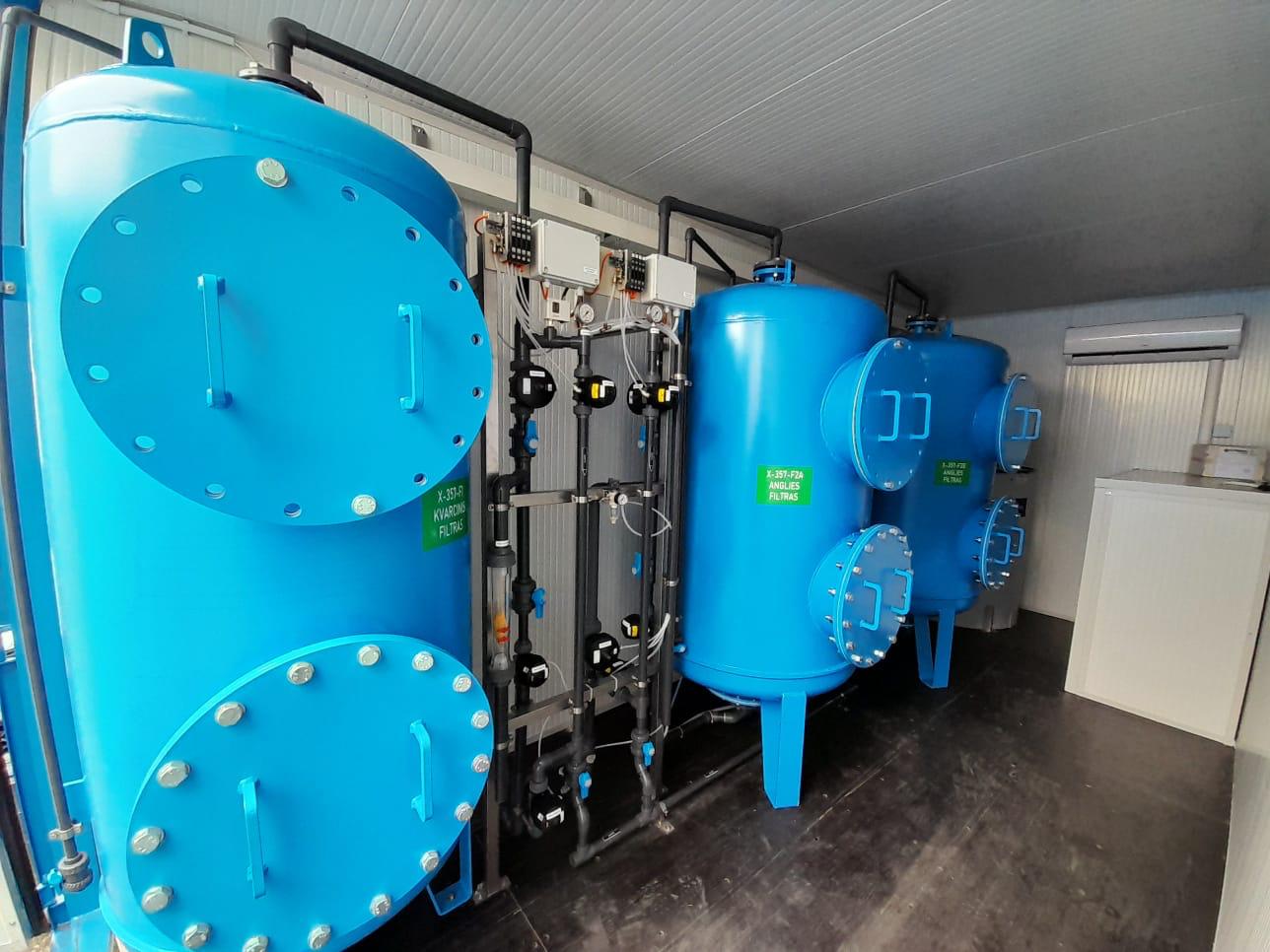

New project in Lithuania of a WTP plant for the waste water produced by an used oil refinery production. The chemical-physical plant mod. CF4000/DS was designed for process water heavily polluted by oils and organic compounds. In order to respect the local sewage discharge limits, the system foresee several treatment steps: oils separation, Fenton reaction, hydroxides precipitation,  desulfating and final filtration with media and carbon filters. The WTP plant was designed for an outdoor installation so the main components are placed in insulated containers.

Technical characteristics:
Capacity of 4 m3/h
Coalescence oil separators

Highlights:

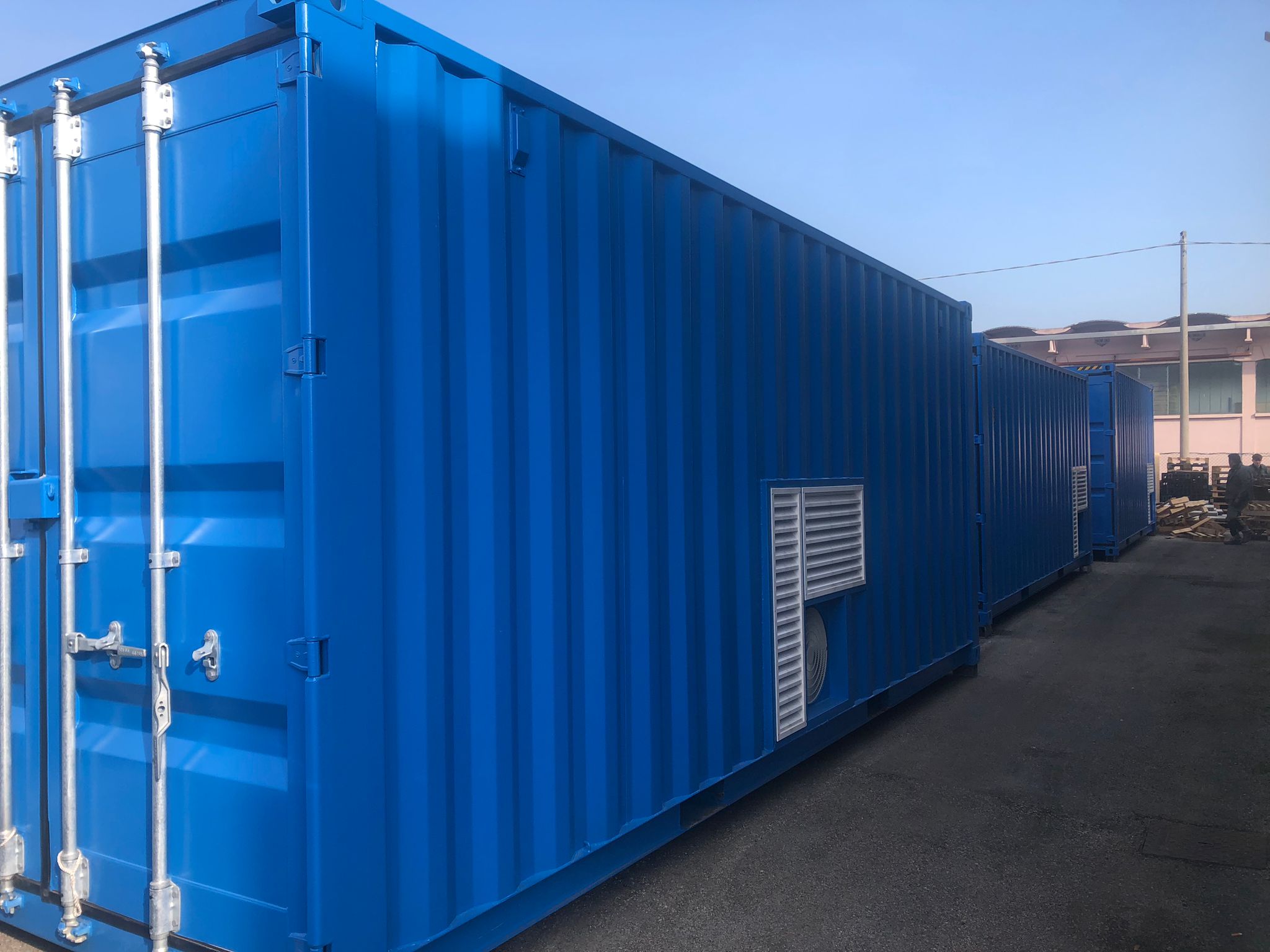

Container installation
Fenton reaction process
Sulphates removal process
Remote supervision
Redundancy for 24h operation
