Vacuum evaporator for textile process solution recovery

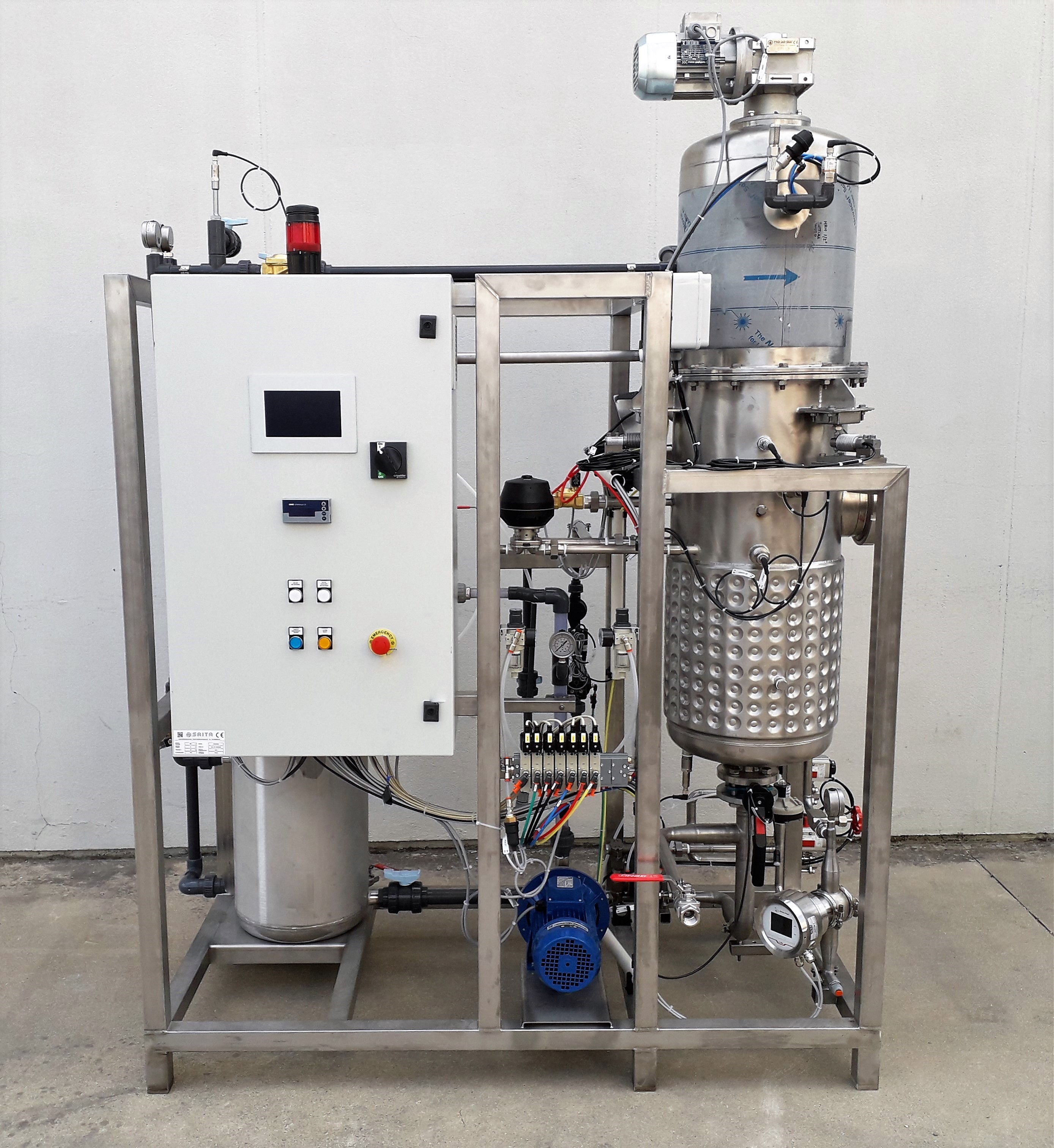

New project for a custom vacuum evaporator mod. CV15HW, for the treatment and recovery of a process solution from textile manufacturing production. The evaporator is used to recover a primary liquid used in the manufacturing process and this solution goes toward the Zero emission and Circular economy targets.
The evaporator has a capacity of 300 lt/d and it is fed with steam and cold water as energy sources for the evaporation process. In order to have a complete control of the evaporation process weight cells and density meter allows to set the exact concentration ratio requested by the process.

Technical characteristics:
Capacity of 300 lt/day
Low boiling temperature < 35°C
Vessel with external cheating jacket
Electrical mixer
Heating primary fluid: Steam
Condensation primary fluid: Cold water

Continuous or batch process
Density meter for the managment of the concentration ratio
Weight cells for the automatic loading of the inlet waste solution
Remote control via ethernet
